SERVICES & ASSOCIATED STARTEGIC PARTNERS
Complete Design & Simulation

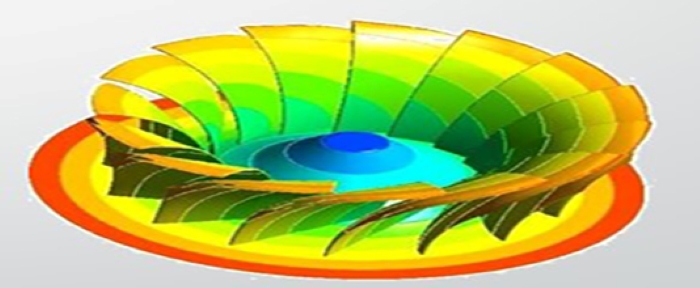

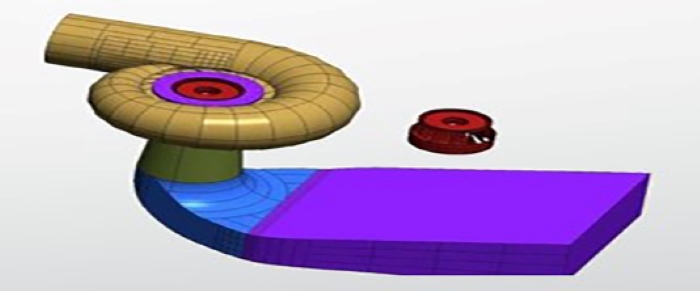

Design of Complete Turbine, Main Inlet Valve, Anti Vacuum Valve, CFD, FEA & Model Testing
Softwares in use:
Solid Edge ST 9
Ansys 17.0
Auto CAD
SERVICES & ASSOCIATED STARTEGIC PARTNERS
Raw Materials(Plates)
SERVICES & ASSOCIATED STARTEGIC PARYNERS

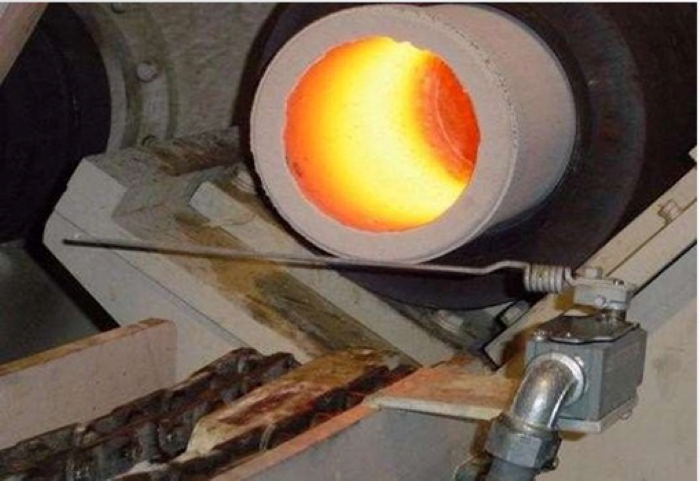

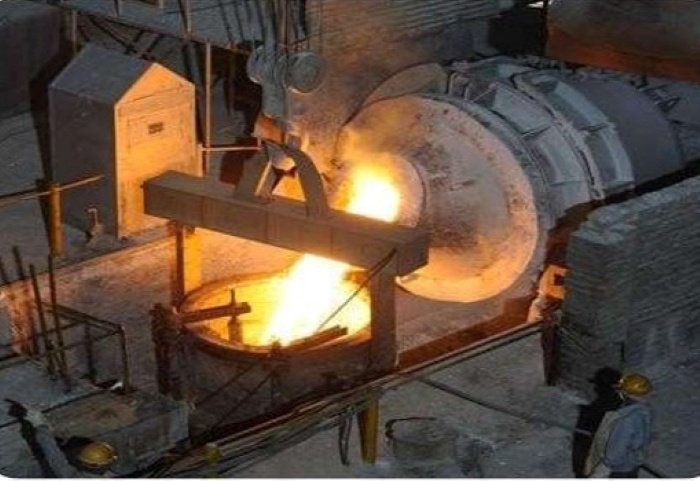

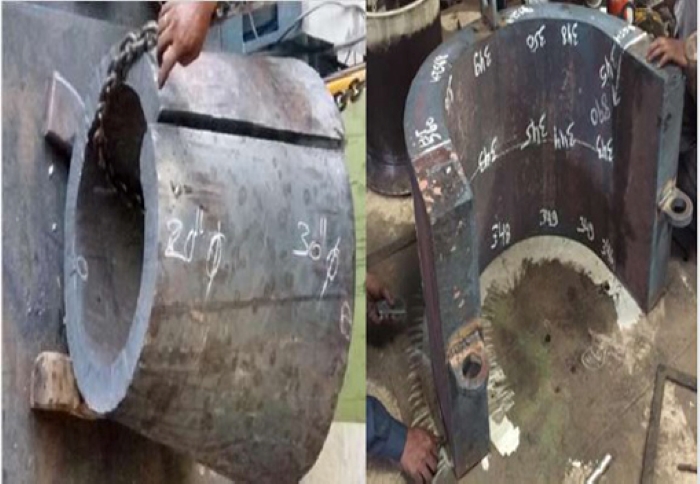

Forging, Large Size & Medium Size Stainless Steel Casting
SERVICES & ASSOCIATED STARTEGIC PARYNERS

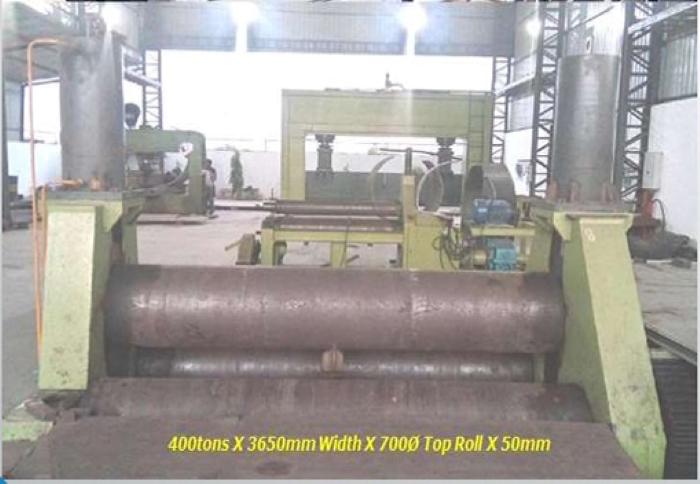

Rolling & Forming
SERVICES & ASSOCIATED STARTEGIC PARYNERS

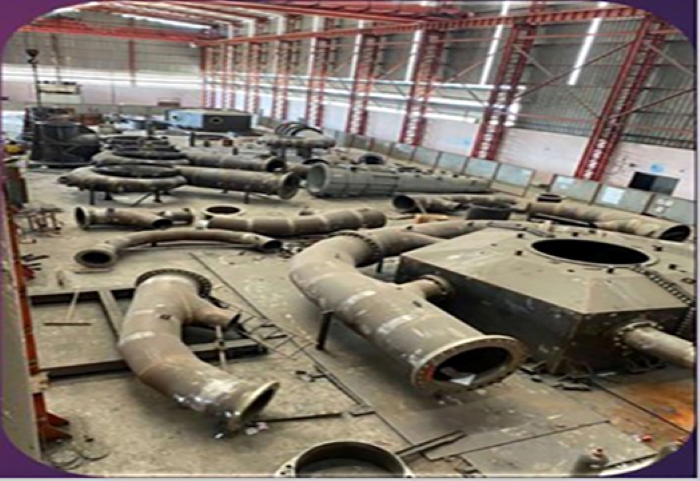

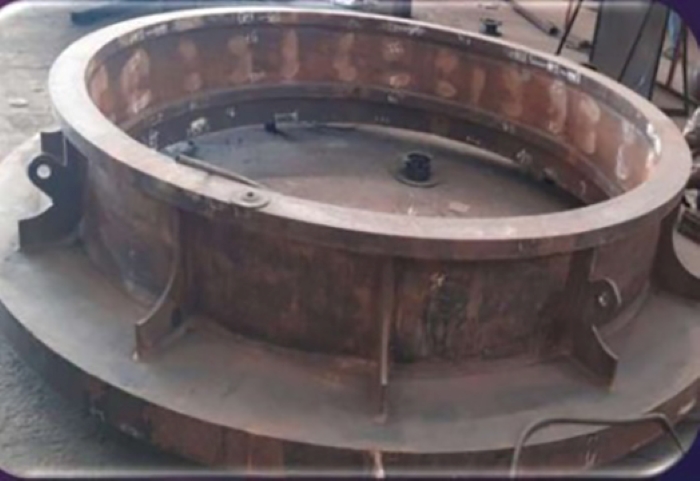

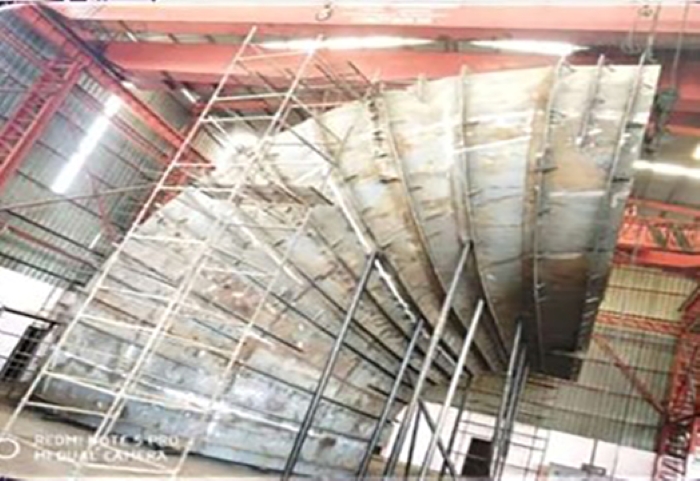

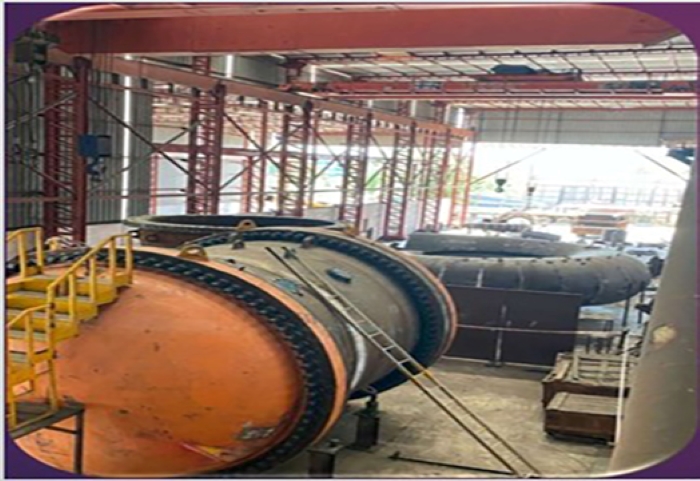

Fabrication
Size: L-60m W-13m H 10.5m
EOT Crane: 75/25 Tons 15/5 Tons
Size: L-80m W-19m H-10.5m
EOT Crane: 25/10 Tons 15/5 Tons
Welding Positioner Size: 6m
SWL: 15 Tons
SERVICES & ASSOCIATED STARTEGIC PARYNERS

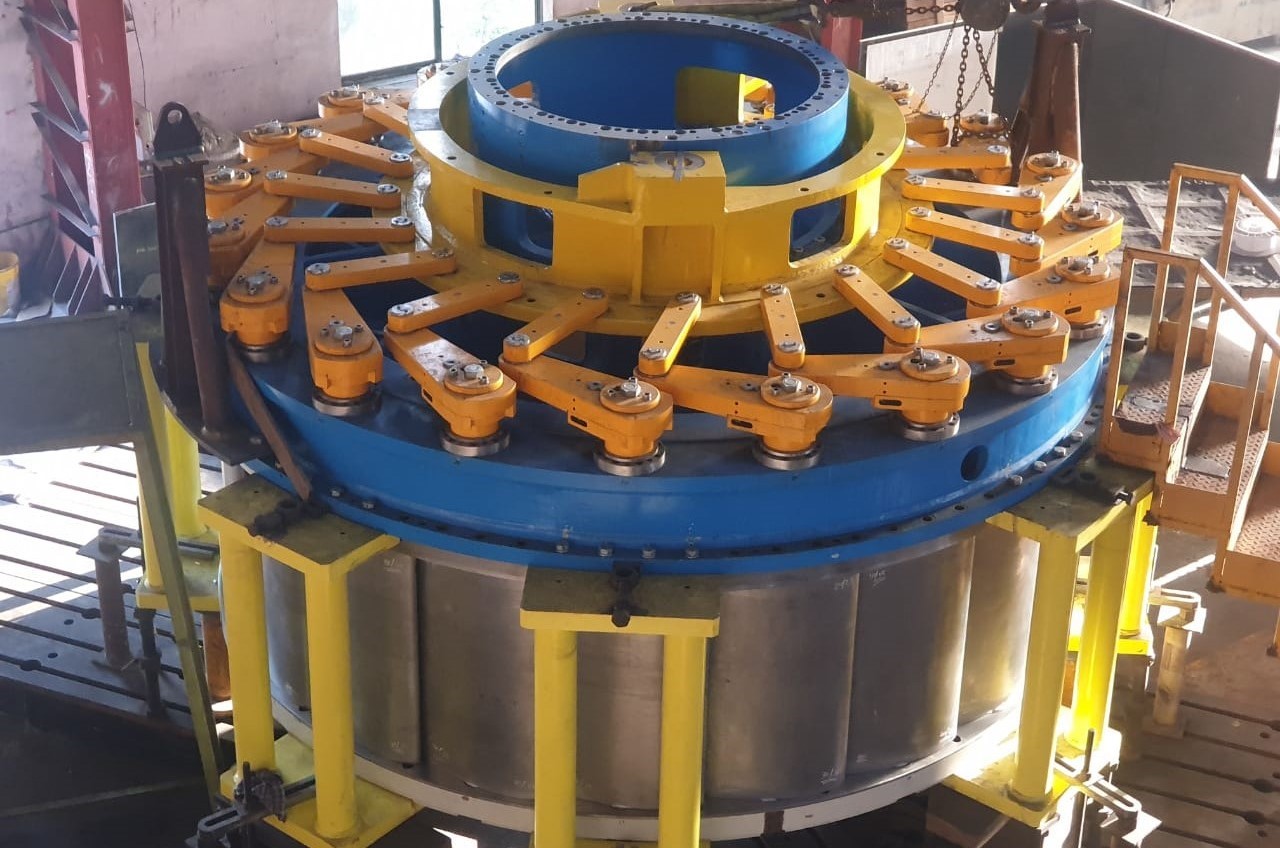

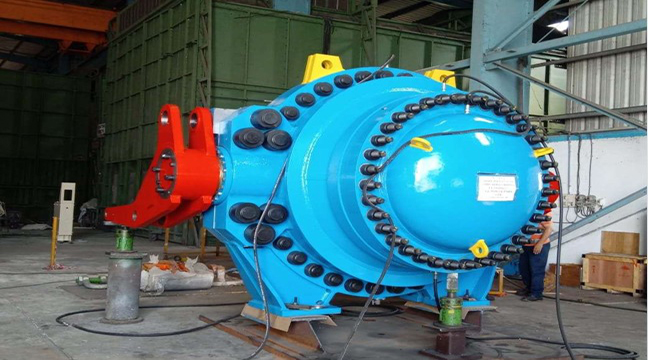

Main Inlet Valve Assembly & Distributor Assembly
Nominal Diameter: 1800
PN RATING: 45
Type of Turbine: Vertical Francis
Qty: 3 nos.
Nominal Diameter: 1200
Type of Turbine: Vertical Francis
Qty: 1 no.
SERVICES & ASSOCIATED STARTEGIC PARYNERS

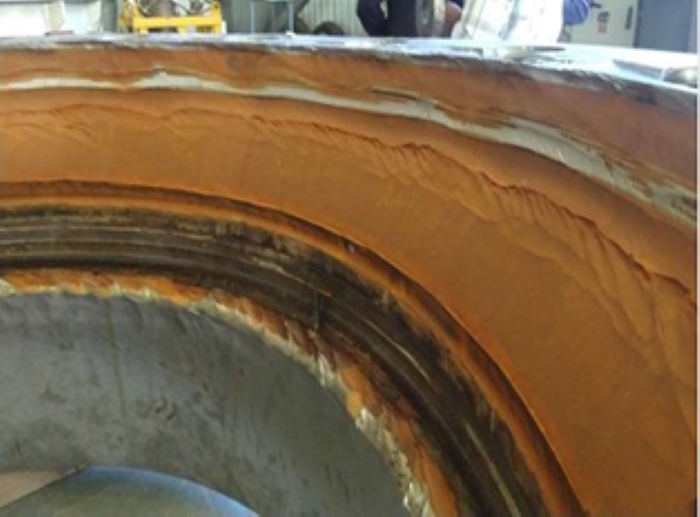

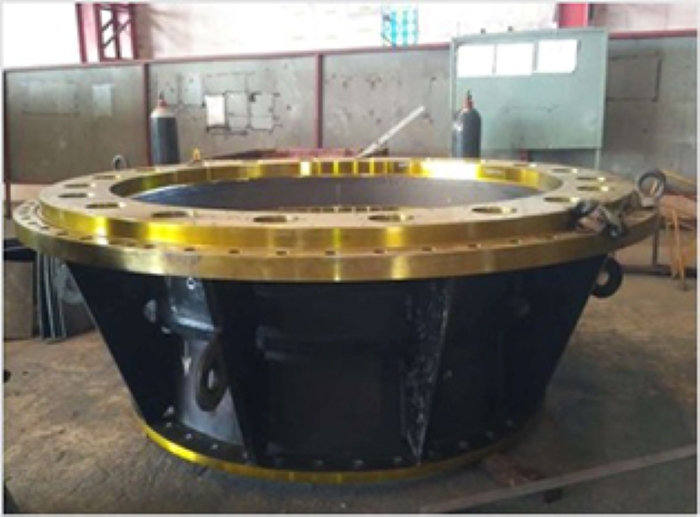

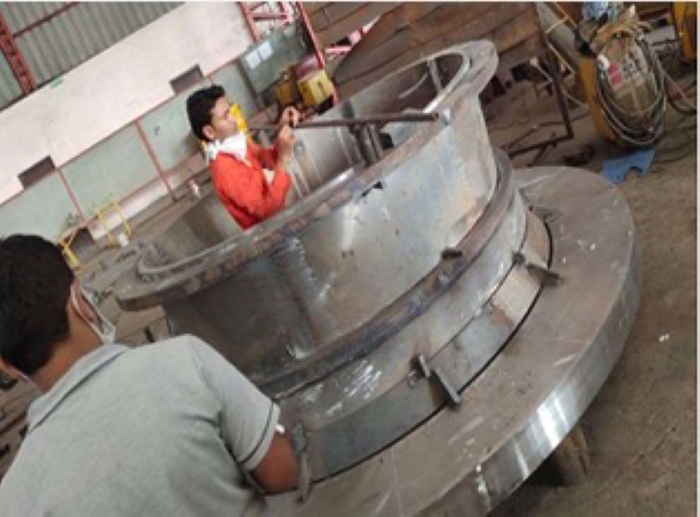

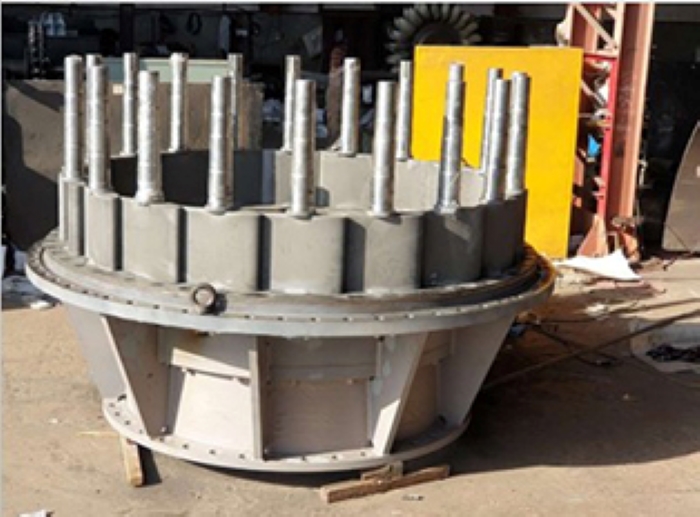

Guide Vane, Facing Plate & Shaft Machining, Head Cover & Bottom Cover

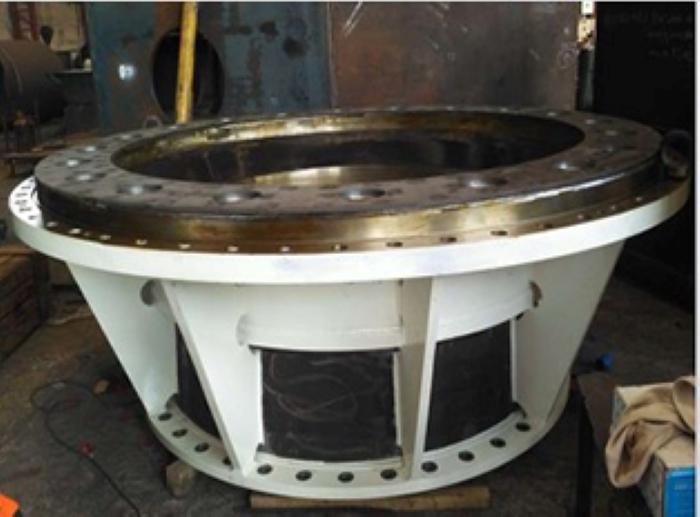

2 X 49 MW Bottom Cover Assembly Ø 2950.
Repairing With New Labyrinth Ring & Guide Vane (HVOF Coated)
Fitting Weight: 10 MT
2 X 49 MW Bottom Cover Assembly Ø 2950.
Repairing With New Labyrinth Ring & Guide Vane (HVOF Coated)
Fitting Weight: 10 MT
2 X 49 MW Bottom Cover Assembly Ø 2950.
Repairing With New Labyrinth Ring & Guide Vane (HVOF Coated)
Fitting Weight: 6.5 MT
2 X 49 MW Bottom Cover Assembly Ø 2950.
Repairing With New Labyrinth Ring & Guide Vane (HVOF Coated)
Fitting Weight: 6.5 MT

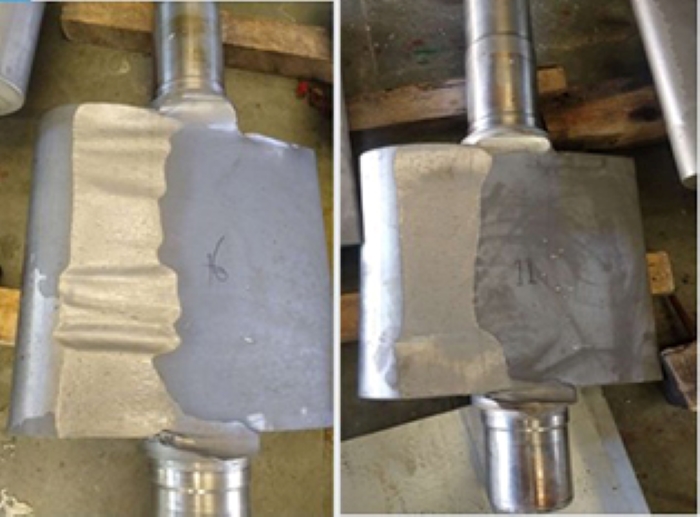

2 X 49 MW Guide Vane Repairing With HVOF
Coating Weight: 0.5 MT
2 X 49 MW Guide Vane Repairing With HVOF
Coating Weight: 0.5 MT
2 X 49 MW New Bottom Cover Assembly Ø 2950.
With New Labyrinth Ring Fitting Weight: 6.5 MT
2 X 49 MW New Bottom Cover Assembly Ø 2950.
With New Labyrinth Ring Fitting Weight: 6.5 MT

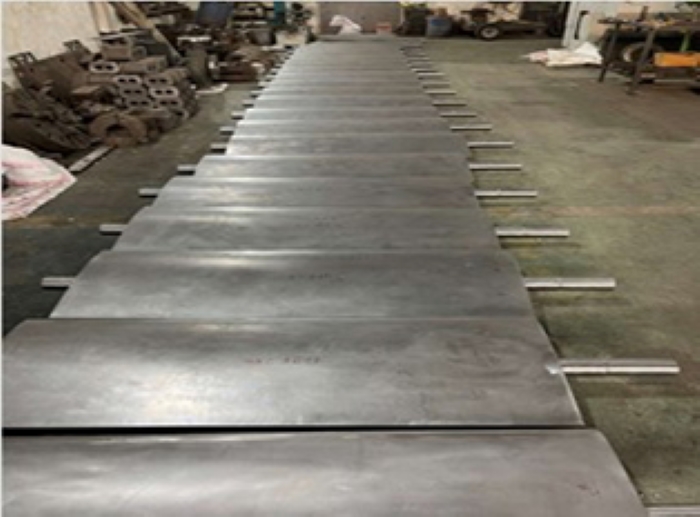

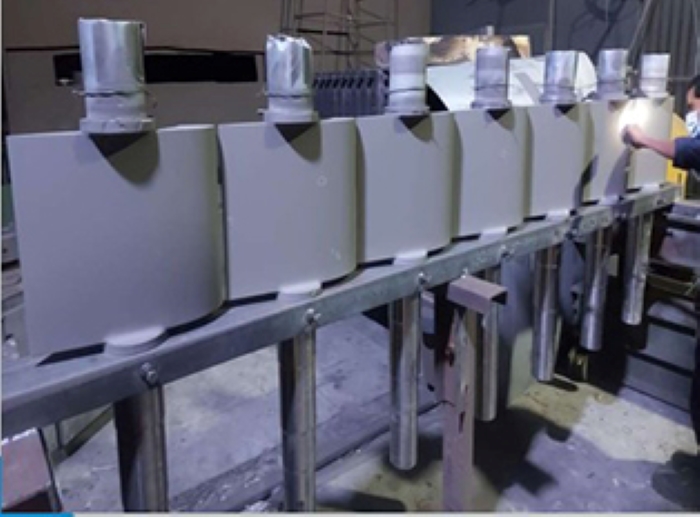

22MW – 50 MW New Guide Vanes

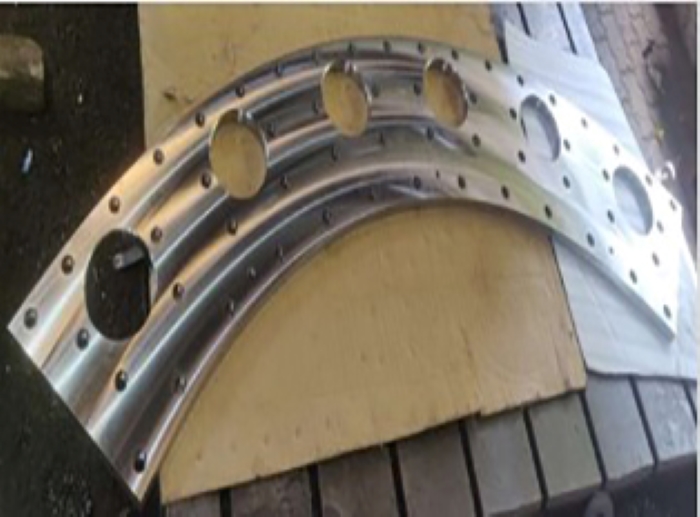

22MW – 50 MW New Facing Plates

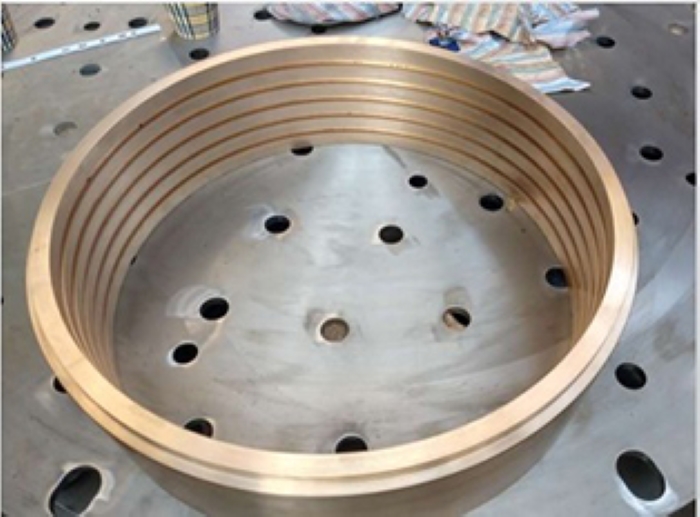

22MW – 50 MW New Labyrinth
SERVICES & ASSOCIATED STARTEGIC PARYNERS

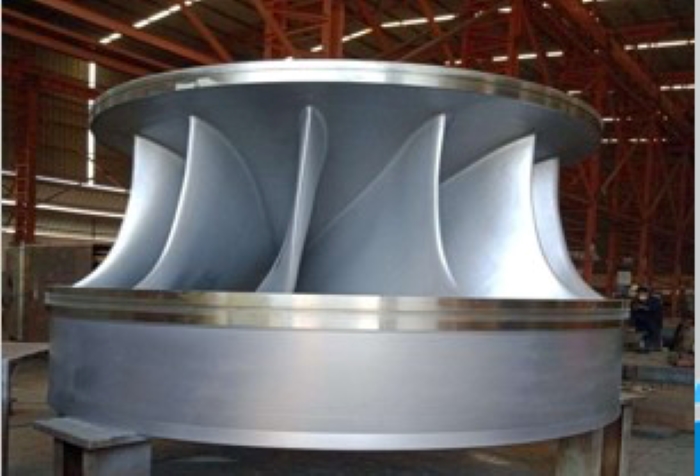

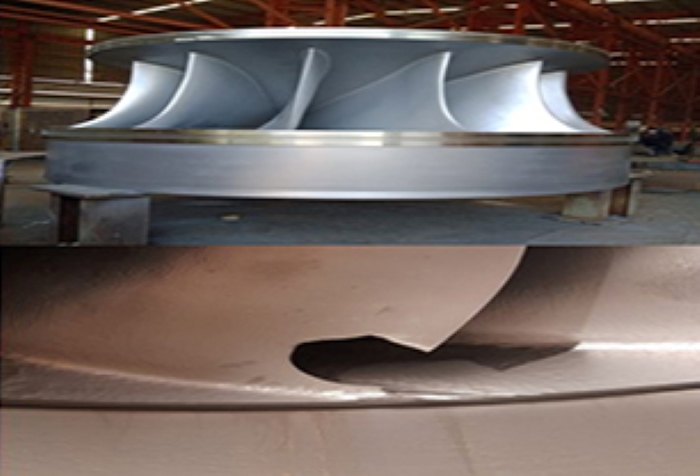

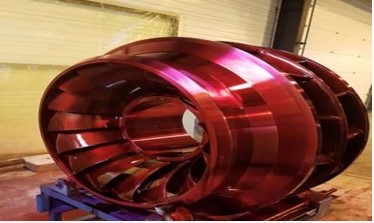

Runner Repairing/Rehabilitation & Balancing

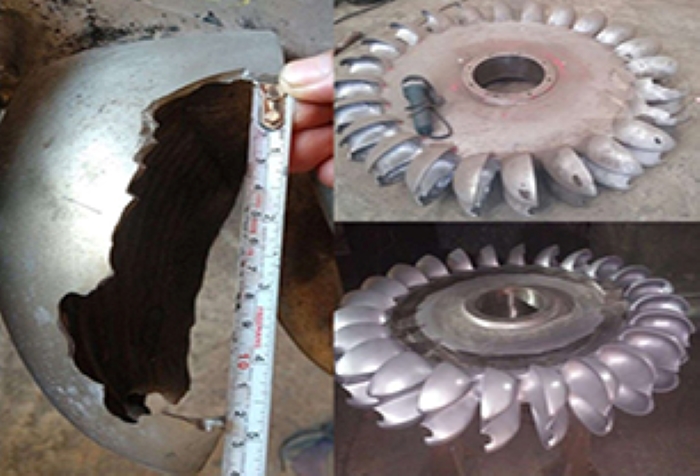

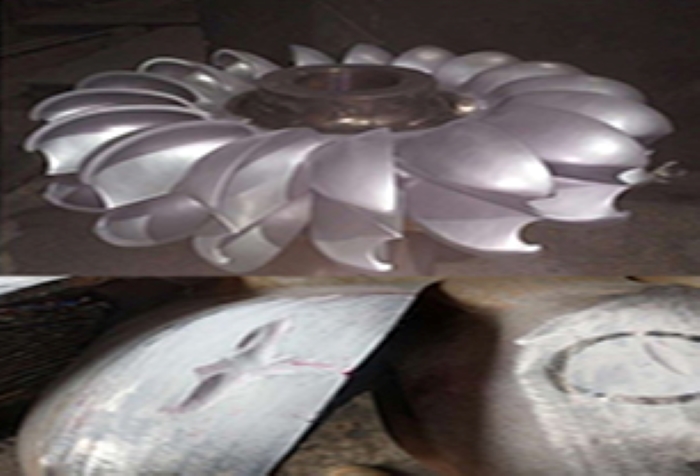

2 X 5 MW Pelton Runner Ø 1450 .
Repairing Weight: 1.5MT

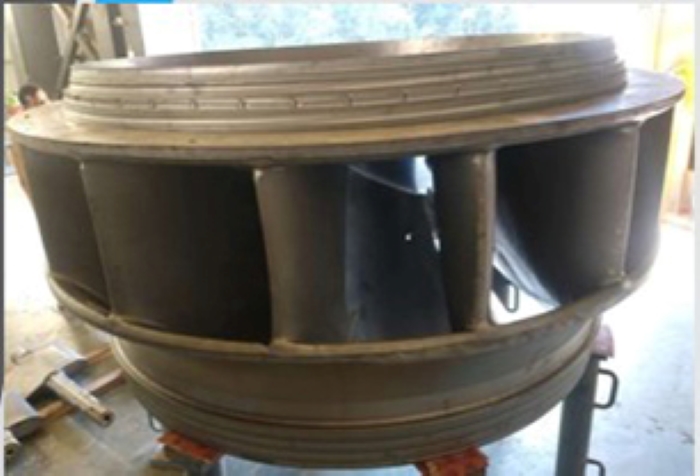

Francis Runner Repair OD Ø 3200
Weight: 14 MT
2 X 2.5 MW Pelton Runner Ø 900.
Repairing With New Bucket (Partial)
Weight: 1.10 MT
2 X 49 MW Francis Runner Ø 1770 .
Repairing With New Blade Profile & Labyrinth Ring
Fitting Weight: 6.0 MT
2 X 48 MW Francis Runner Ø 3040.
Repairing With New Labyrinth
Fitting Weight: 14.5 MT
Static Balancing

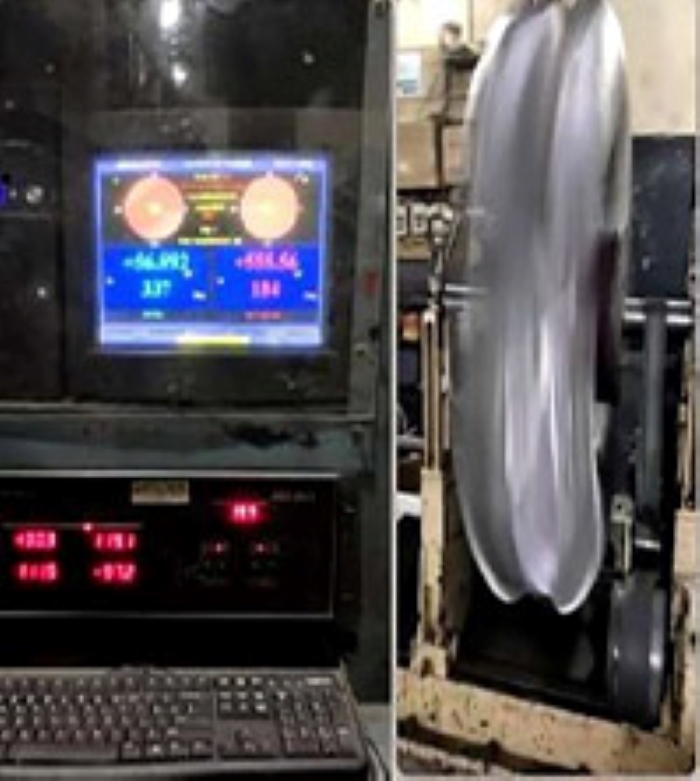

Dynamic Balancing

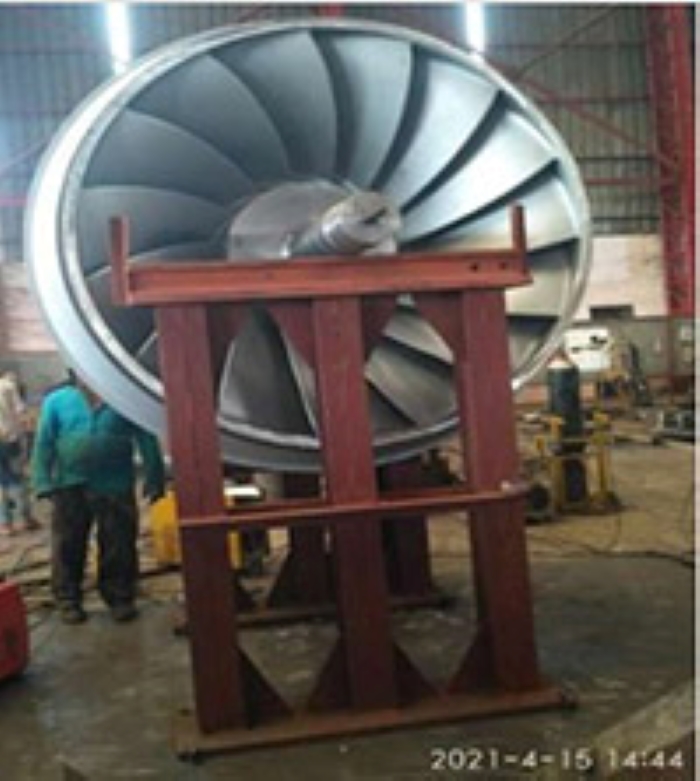

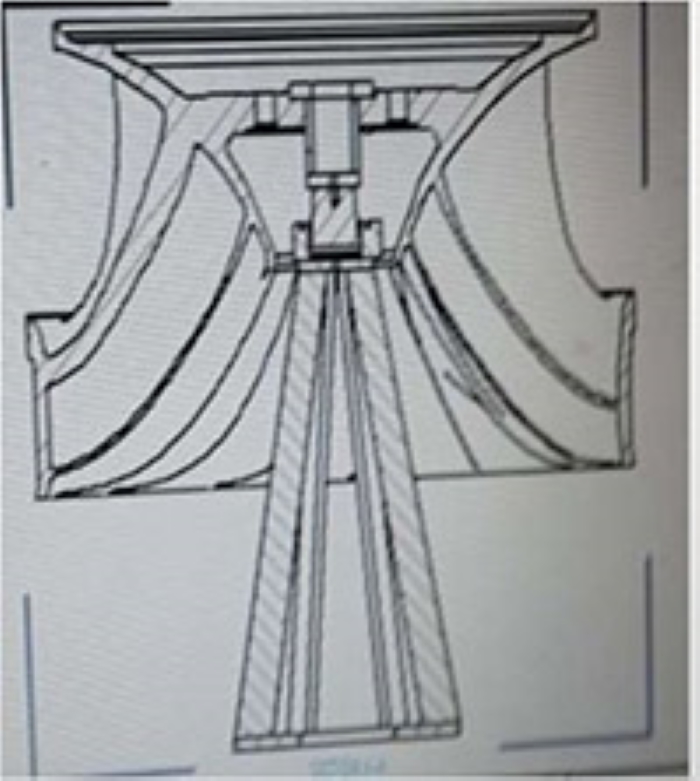

Static Balancing Large Runners
SERVICES & ASSOCIATED STARTEGIC PARYNERS

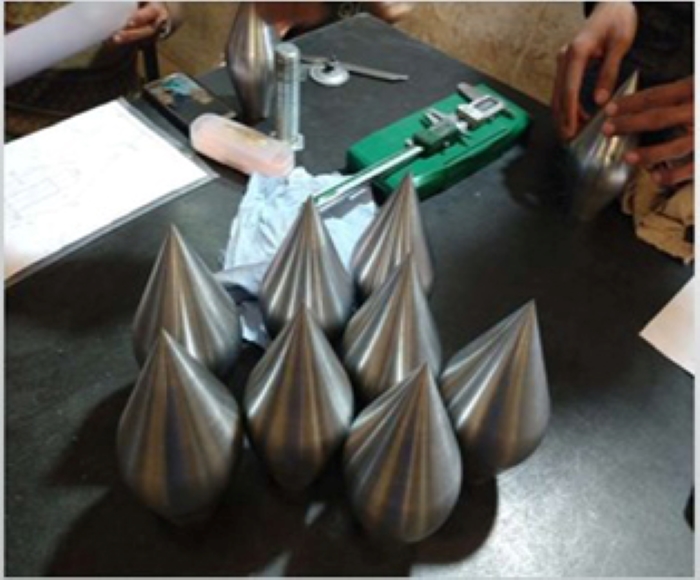

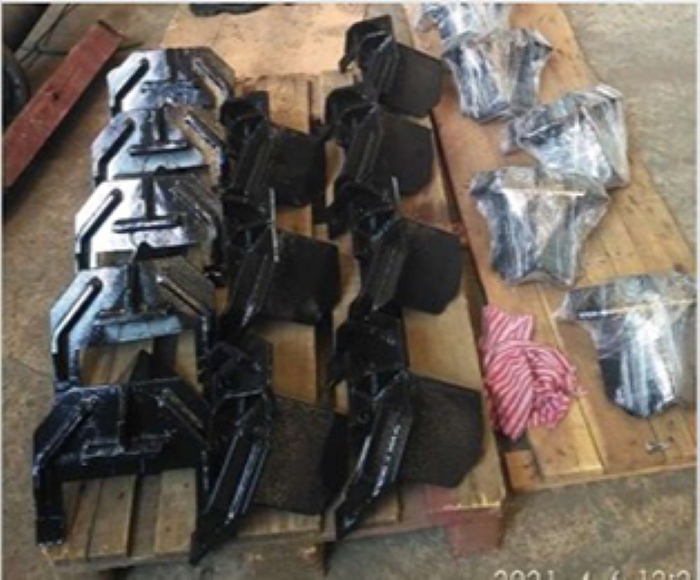

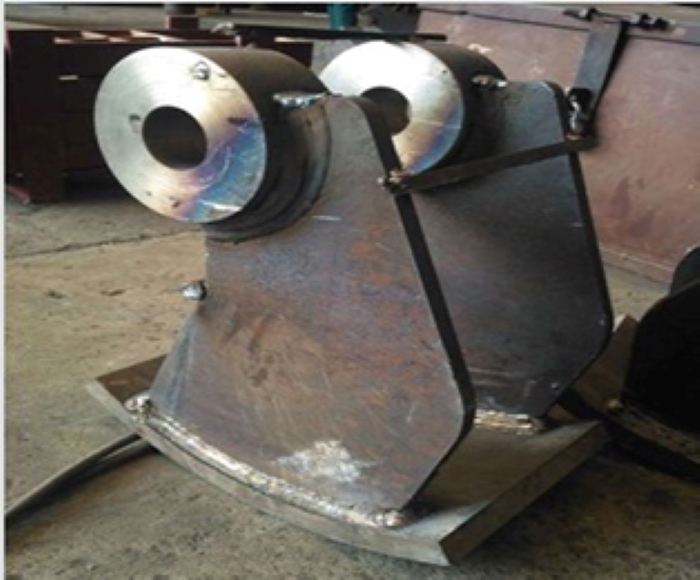

Nozzle Assembly Spare Parts
5 MW - 196 MW Pelton Turbine Nozzle Assemble Components & with HVOF Coating
5 MW - 196 MW Pelton Turbine Nozzle Assemble Components & with HVOF Coating

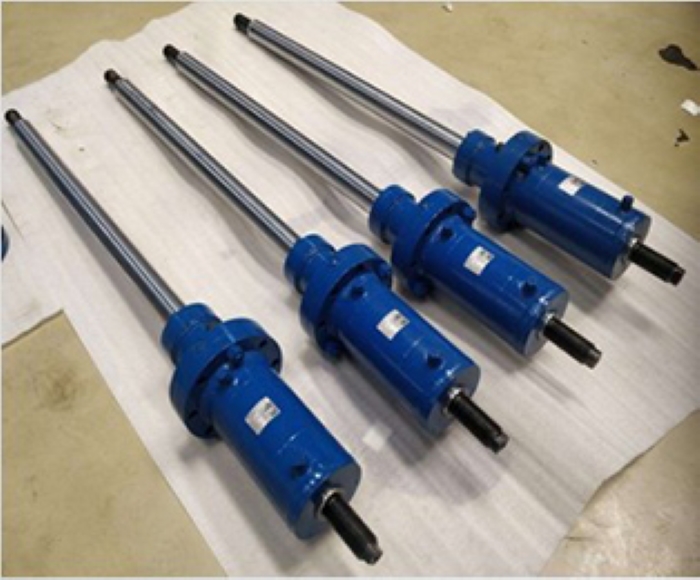

10 MW Pelton Turbine Nozzle Servomotor With Spare Parts

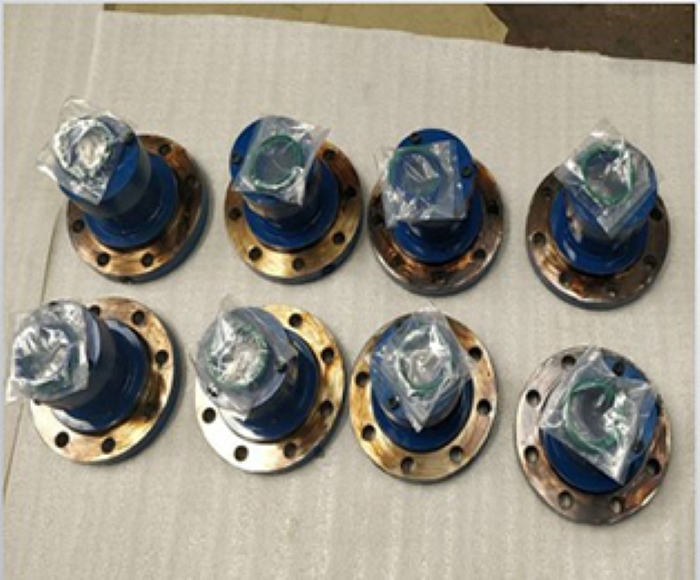

2 X 5 MW Nozzle Assembly Spare Parts
SERVICES & ASSOCIATED STARTEGIC PARYNERS

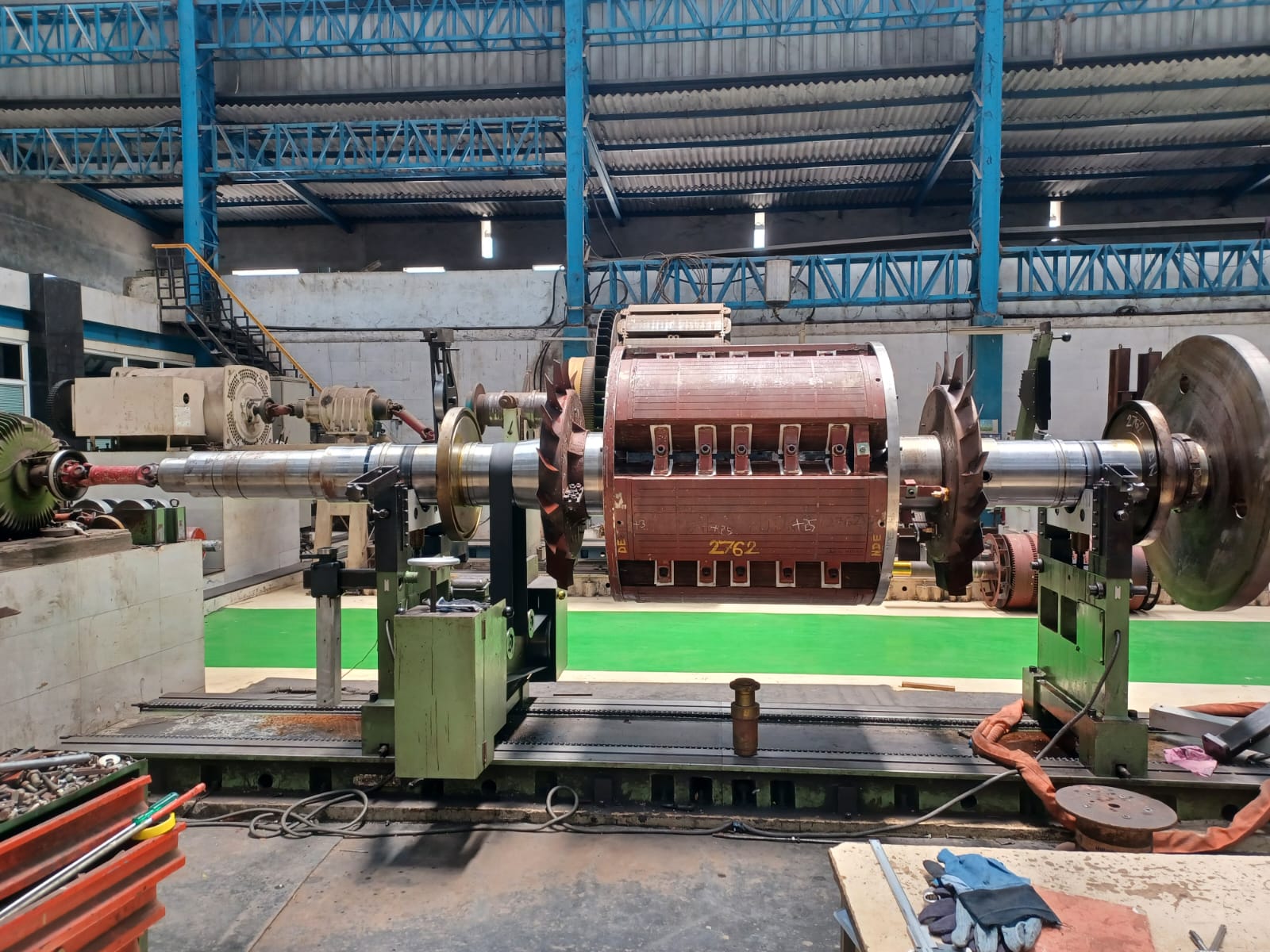

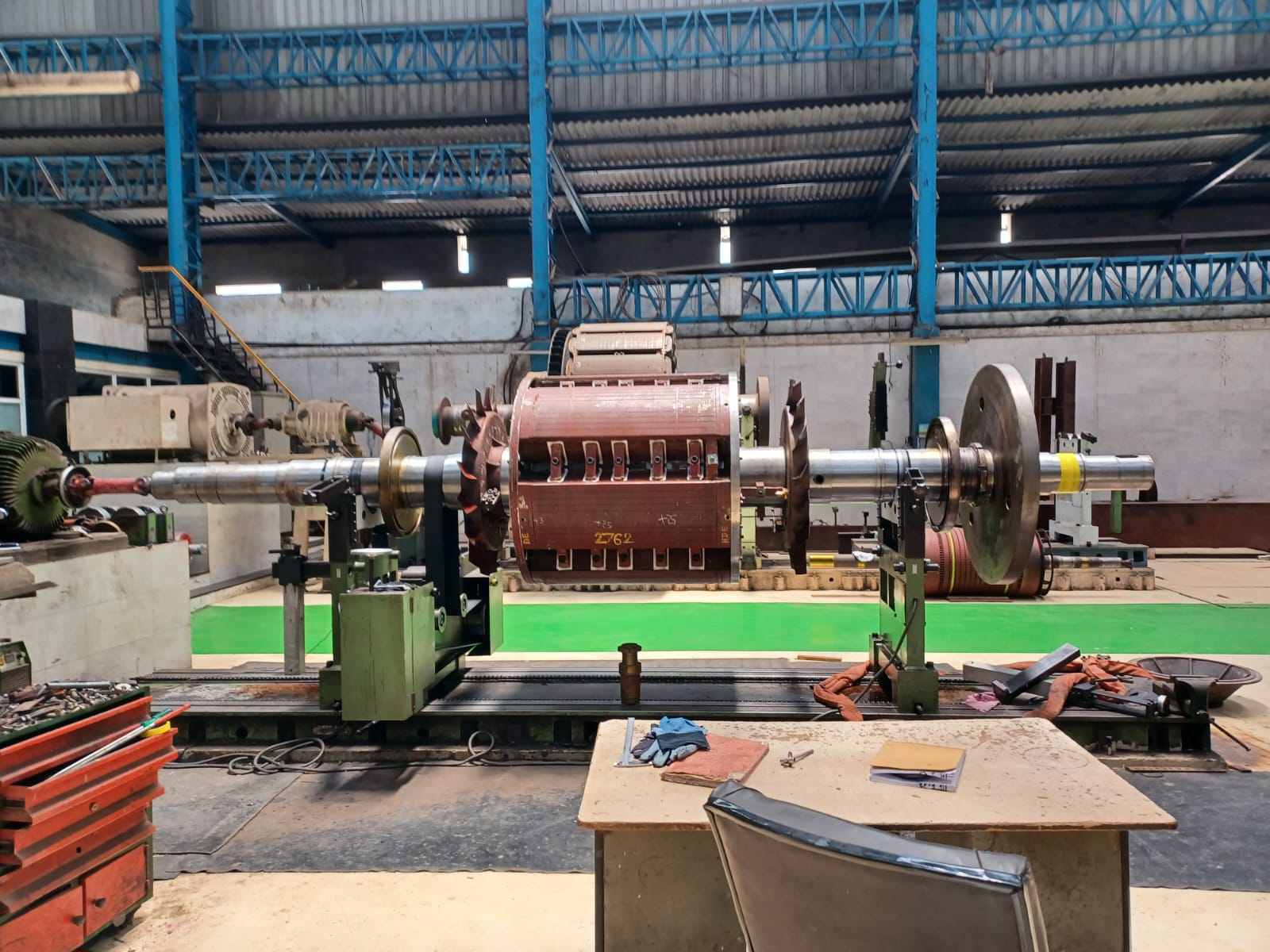

Rotor Pole(Shaft) Assembly
SERVICES & ASSOCIATED STARTEGIC PARYNERS

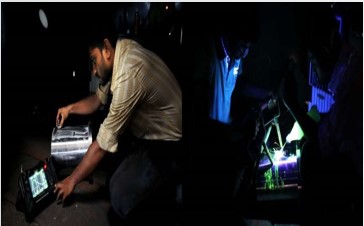

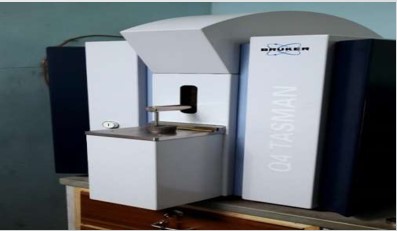

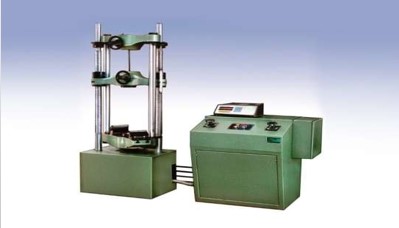

NDT (UT,PT,MT,VT,RT) Precise Measurements & Lab Testing
SERVICES & ASSOCIATED STARTEGIC PARYNERS

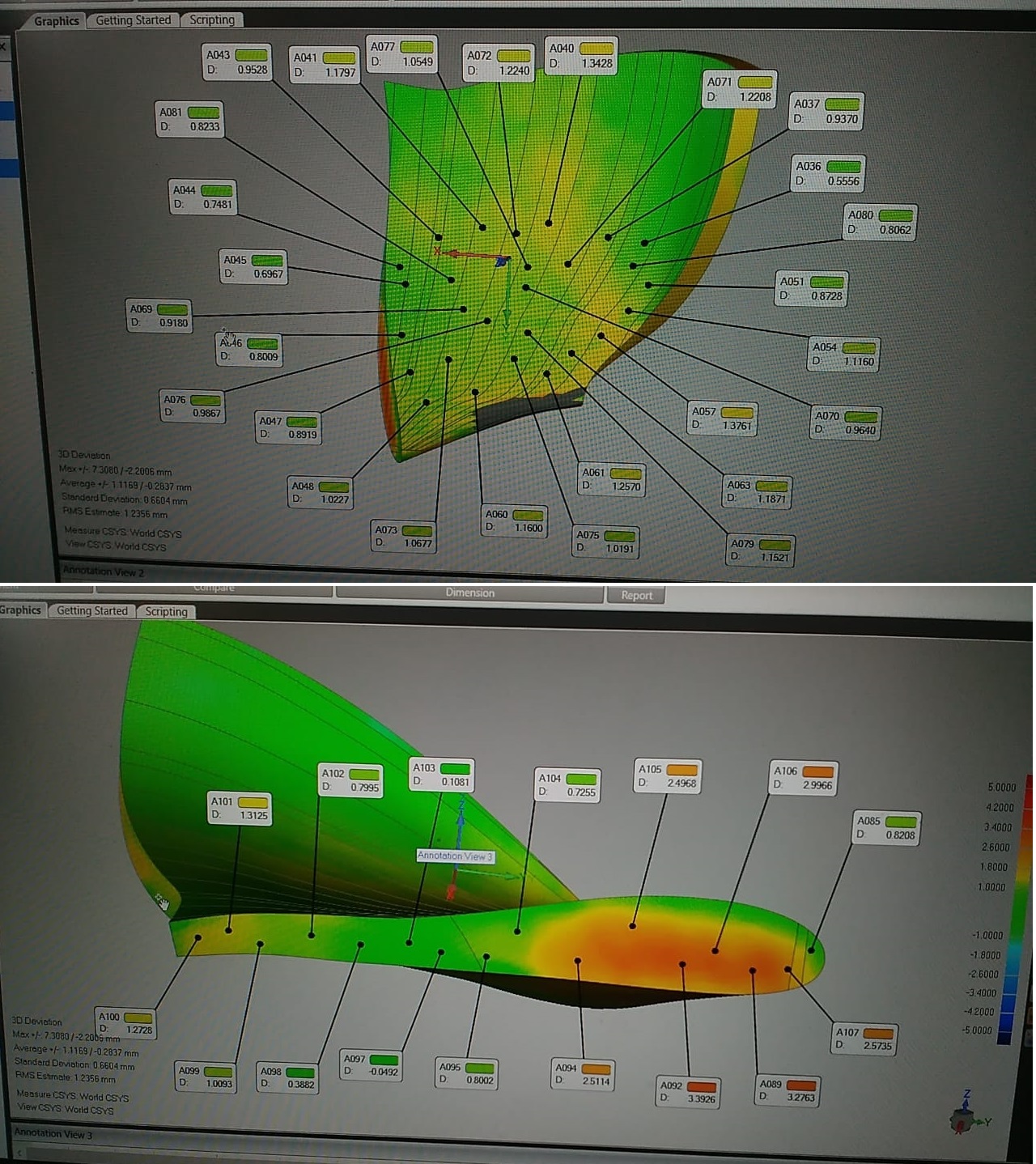

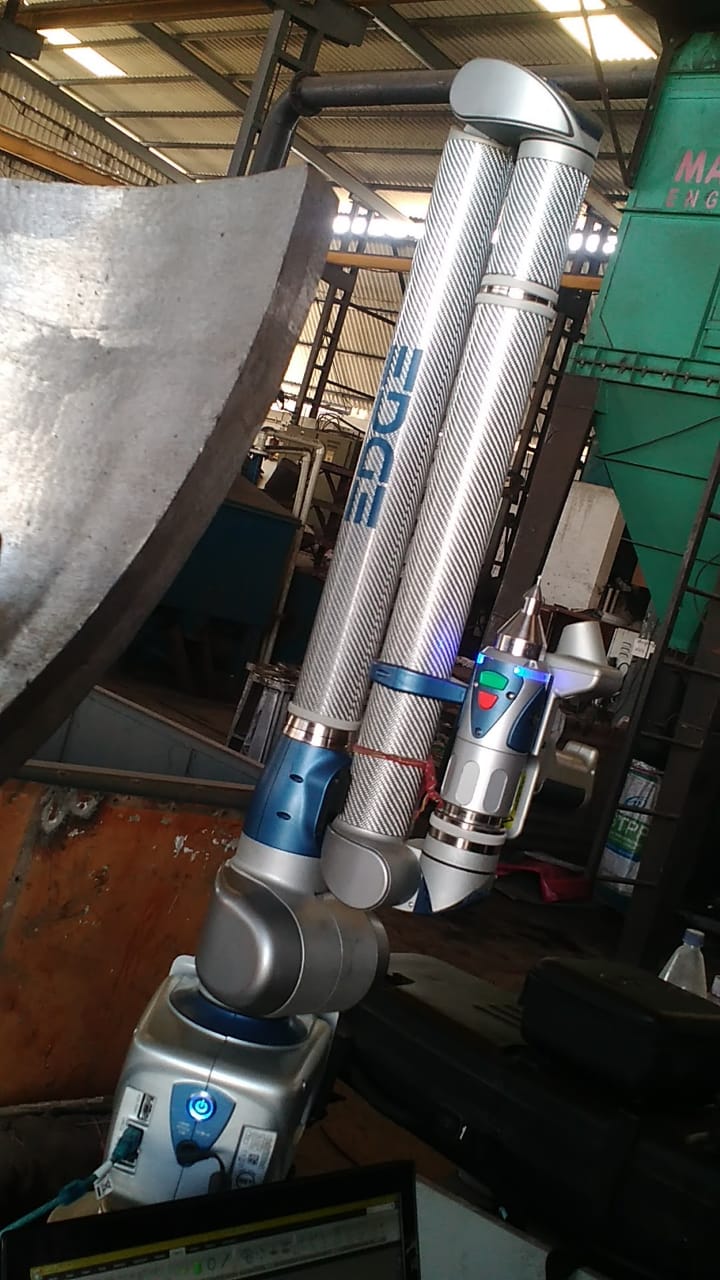

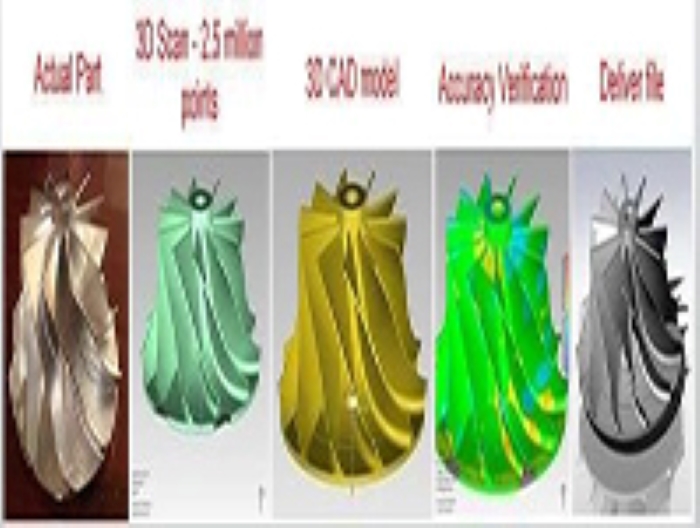

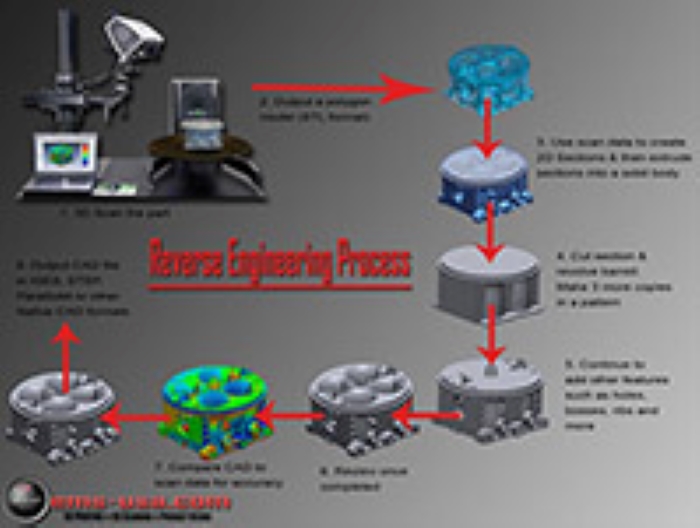

Reverse Engineering
